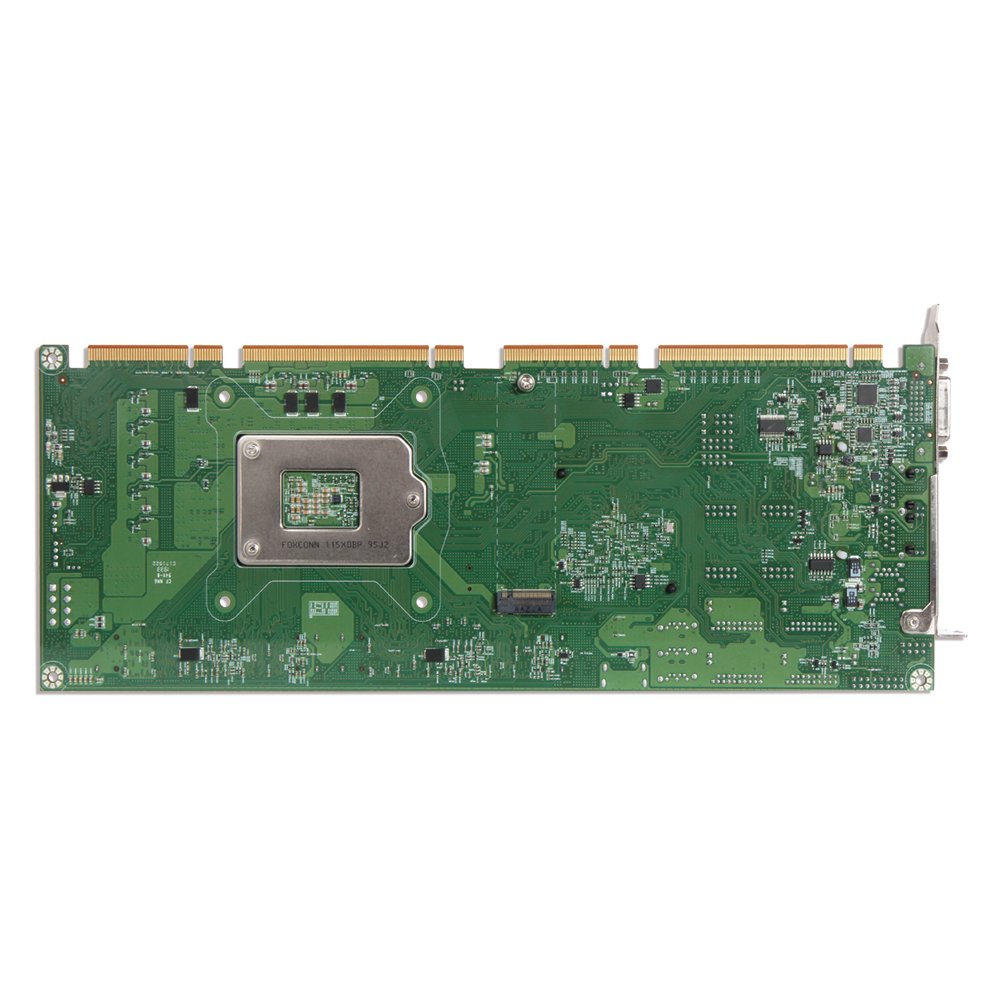

ROBO-8114VG2AR is based on Intel? C246 chipsetand workstation processors. Built with flexible PCI express expansions, ROBO- 8114VG2AR is suitablefor Medical, Industrial Automation
| MODEL | ROBO-8114VG2AR |
| Form Factor | PICMG1.3 |
| CPU | Intel? Xeon? E3/ Core? i3/i5/i7/i9/ Pentium?/Celeron? |
| Chipset | Intel? C246 |
| BIOS | AMI UEFI |
| Memory | 4 x DDR4 ECC SO-DIMM up to 128GB |
| Expansion | 4x PCI slots 1x PCIe x16 slot or 2x PCIe x8 slots or 1x PCIe x8 slot 2x PCIe x4 slots 1x PCIe x4 slot |
| Display | DVI-I / HDMI? |
| Audio | Realtek ALC886 HDA codec |
| LAN | 2x GbE |
| Serial Port | 2x RS-232 ports 2x RS-232/422/485 |
| USB | 8x USB3.2 Gen1 2x USB3.2 Gen2 4x USB2.0 |
| Storage Devices | 5x SATA III 1x M.2 Type M 2280 |
| GPIO | 8 bit |
| Others | PS2/KB & MS |
| Dimension | 338.5 x 126.39mm |
| AB1-3J28 | ROBO-8114VG2AR. PICMG 1.3(PCI-E+PCI).LGA1151. C246 PCH. Intel Xeon/Core i3 processors.SHB.w/VGA/Dual GbE/Audio/four COM ports |
| Standard | TBD Installation CD |
| B6902352 dual head COM port cable with bracket | |
| B6903351 DVI-D + VGA cable | |
| B8981980 PICMG SBC Handling and Installation Notice | |
| B6902932 SATA III cable | |
| Optional | B6903090 USB 3.0 cable with bracket |
| B6902980 PS/2 Keyboard / Mouse Cable with bracket | |
| B6902230 USB port cable with bracket |
